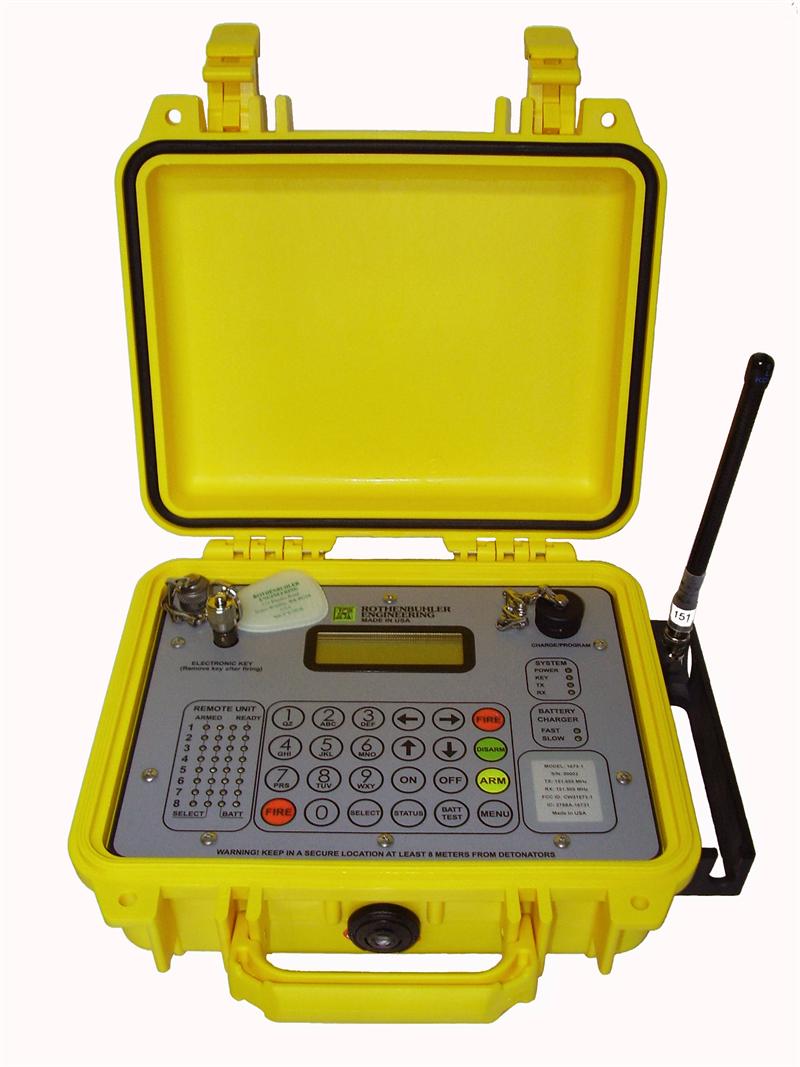

1673 Remote Firing Device Controller

×
×
Price:
$4,500.00
SKU:
1673-C
Shipping:
Calculated at checkout
Quantity:


Description
Reviews
Related Products
Product Videos
Warranty
Also Viewed
By Category
Other Details
  • Product Description

    1673 Remote Firing Device Controller


    THE 1673 REMOTE FIRING DEVICE (RFD) is an intelligent and discrete 2-way radio controlled remote
    blast initiation system.

    The radio system’s signal is digitally encoded (addressed). The latest microprocessor and message encoding/validation technology has been combined to prove a SAFE, RELIABLE and ACCURATE Remote Firing Device.

    Rothenbuhler Engineering engineered this system using over 20 years of military and commercial RFD experience.

    HIGHLIGHTS AND NEW FEATURES:


    FIRE UP TO 64 DUAL-OUTPUT REMOTES
    The Controller Unit is capable of commanding up to 64 remotes that can be either electric or non-electric, in 8-Remote groups.


    EVENT LOG WITH GPS
    The history event log keeps a record of information such as unit state, post blast motion detect value, firing voltage level, battery level and the date and time the event was logged.


    With the GPS included, each event will also have the longitude and latitude of where the unit was when the event was recorded.


    POST BLAST MOTION
    DETECTION
    Each Remote unit has a sensor that measures the seismic motion that may be expected when a successful blast detonation has occurred.

    The Controller unit then reports that a post-fire motion was detected, useful in subsurface operations when the successful initiation of a blast cannot be easily determined.



    AUTOMATIC
    DISARM WITH TIMER
    The automatic-disarming function ensures that the unit returns to a safe state in the event of a loss of communications, after a time out period.


    SEQUENTIAL FIRING
    MODE
    The Sequential Fire feature allows the user to space the firings of each Remote unit so that they do not fire
    at the same time, 0-2 seconds between the firing of each Remote.

    This feature is particularly useful when firing multiple blocks where a delay is needed between each block.


    STANDBY MODE
    Both the Controller and Remote Units can run on standby for typically 10-14 hours before recharging is required.


    RETRACTABLE & GUARDED ANTENNA
    Raised vertically during operation and retracted into an antenna guard for extra protection during transport and storage.


    LCD DISPLAY WITH BACKLIGHTING
    The LCD display provides information that is supplemental to the basic operation of the 1673 RFD. Whenever a switch is pressed, the LCD display’s backlighting function will be enabled. After 30 seconds of inactivity, the backlighting will automatically turn off to save battery power. The LCD is rated for -20 to 70°C (-4 to 158°F).


    INCREASED FIRING CAPACITY
    Minimum of 350V, allowing for approximately 75 electric caps in series, or a maximum circuit resistance of 150

    All UNITS CONTROLLER

    • Low battery & unit status indications
    • Interactive keypad EMI shielded, shock mounted, solid state circuitry
    • Polls for and displays status of all Remotes
    • Watertight cases Transmit and confirmation indicators
    • Long-life rechargeable NiMH batteries – 4 hr. charge Controls up to 8 Remotes at one time.
    • Programmable for leaky feeder & repeaters

    CERTIFICATIONS: US-Federal Communications Commission (FCC)
    CANADA-Department of Communications (DOC)

    GENERAL Operating Temperature -30OC to +60OC**
    Carrier Frequency VHF – 150 to 174 MHz -22OF to +140OF
    FCC & IC Certified **Optimum battery range 0OC to 50OC
    CONTROLLER
    Frequency Stability + 1.5 ppm
    Modulation 11K2F3D (FSK)
    Transmit Power 1 – 5 Watts
    Operating Voltage 7.5 VDC
    Transmission Range 1 – 5 miles**
    Receiver Sensitivity 12 dB SINAD:<0.45uV
    Size (in) 10W x 12D x 4.5H
    Size (cm) 25.5W x 30.5D x 11.5H
    Weight 6.5 lbs.
    Weight 3.0 kg
    Case Waterproof Pelican 1200
    Color Yellow
    Battery Pack Rechargeable NiMH
    Battery Life
    Standby 10-14 hours
    Complete Recharge 4 hours
    Current Draw
    Standby 135 mA
    Transmitting 1 – 2.5 Amps
    REMOTE
    Frequency Stability + 1.5 ppm
    Modulation 11K2F3D (FSK)
    Transmit Power 1 – 5 Watts
    Operating Voltage 7.5 VDC
    Transmission Range 1 – 5 miles**
    Receiver Sensitivity 12 dB SINAD:<0.45uV
    Size (in) 10W x 12D x 4.5H
    Size (cm) 25.5W x 30.5D x 11.5H
    Weight 7.0 lbs.
    Weight 3.2 kg
    Case Waterproof Pelican 1200
    Color Orange
    Battery Pack Rechargeable NiMH
    Battery Life
    Standby 10-14 hours
    Complete Recharge 4 hours
    Current Draw
    Standby 135 mA
    Transmitting 1 – 2.5 Amps
    Fire Capacity (Electric) 150Ω (350V @ 5 Joules)
    Fire Output (Non-electric) 2.5 kV (0.6 Joules)


    1673 REMOTE FIRING DEVICE WARRANTY


    The 1673 Remote Firing Device is guaranteed for 2 years (batteries - 1 year, spark tips excluded) against defects in workmanship and materials.

    If the equipment should fail during this period, we will repair it at our factory or at the nearest authorized service facility. Warranty service on this equipment must be performed only by an authorized dealer.

    Unauthorized service procedures or parts will void and cancel your warranty, and may cause radio equipment to fail, resulting in accidents and/or personal injury.

    This is a limited warranty and is given in place of legally implied warranties of merchantability and fitness for a particular purpose.

    Our liability is expressly limited to the cost of repair or replacement of the RFD under this guarantee, and does not extend to additional or consequential damages resulting from the operation of equipment.

    BATTERY CHARGER
    100-240V / 47-63Hz auto switching
    Max. current draw 12VDC, 2.1A
    Typical charge time 3-4 hours
    ** Line-of-sight. Typical transmission range based on
    power level, frequency, terrain, and local interference.
