Counter Surveillance Real Time Spectrum Analyzer

×
×
Price:
$13,999.97
SKU:
DX2000-6
Shipping:
Calculated at checkout
Quantity:


Description
Reviews
Related Products
Product Videos
Warranty
Also Viewed
By Category
Other Details
  • Product Description

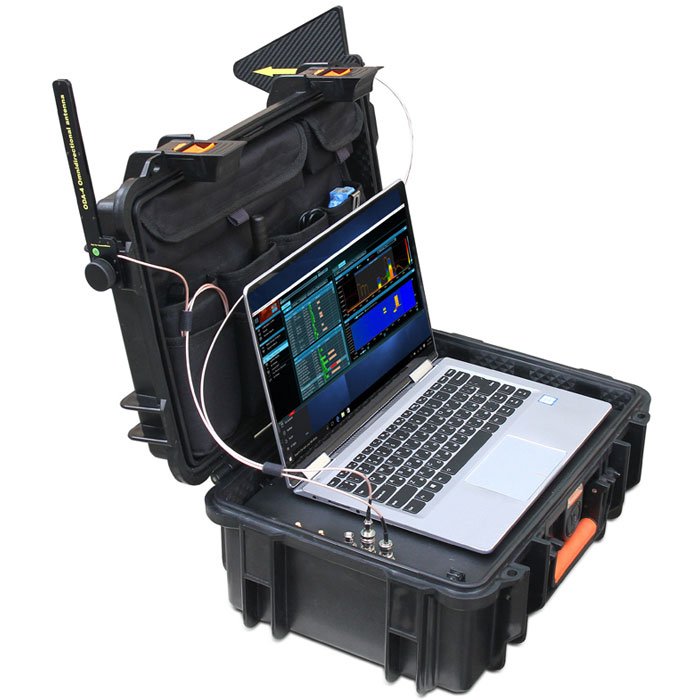

    Counter Surveillance Real Time Spectrum Analyzer


    You'll want this Counter Surveillance Real Time Spectrum Analyzer if it is absolutely critical that you find all sources of RF surveillance gear that you're being tracked with.

    The Delta X 2000/6 system detects signals in real time while providing highly reliable results. The system’s hardware incorporates a powerful spectrum analyzer which provides super-fast speed of measurements with extreme sensitivity. The antenna switcher and low-frequency converter extend the system’s functionality.

    Counter Surveillance System 40 kHz-6000 MHz

    • Quickly and reliably detects all kinds of RF listening devices, including analog, digital, constantly existing and intermittent, sending audio or video, with or without encryption
    • Finds hidden surveillance devices employing the digital standards GSM, 3G, 4G/LTE, Bluetooth, Wi-Fi, DECT, etc.
    • Detects illegal information transmission in AC, telephone, Ethernet, alarm and other wires as well as in the infrared range
    • Can work in instant detection mode, guarding mode and locating  car tracker detection mode
    • Has 20-50 times higher sensitivity compared to conventional RF detectors
    • Can monitor the RF environment 24 hours a day with data logging
    • Capable of detecting covert bugging devices with accumulation function and transmitters hidden within the spectrums of other signals
    • Supports storage of an unlimited quantity of signals. Full information is stored in the log and can be reviewed during the detection or later. Multiple logs are supported.
    • Demodulation of audio in FM, AM, USB, LSB, CW (adjustable BW 3…240 kHz)

    Agency or Multiple Units please Request a Quote for best pricing and delivery

    Exclusive features of the 2000X-6 version:

    • Update rate 2000-3000 MHz per second: Effectively REAL TIME
    • Frequency range 40 kHz – 6000 MHz
    • Detected signal’s existence time: 2-3 seconds
    • Detects digital signals with short bursts by accumulating data

    Software Functions

    • Rich visual representation: Spectrogram/Persistence, Waterfall, Alarms graphs
    • The Known Signals table allows the system to reject TV, FM and other ‘friendly’ signals while maintaining high sensitivity to unknown signals.
    • The Detector allows the operator to perform location of a bugging device with both visual and audio notification
    • The Alarm Threshold decreases the false alarm rate
    • The Hold Max Danger feature selects and shows the strongest signals for their location as the system is moved during detection
    • The Update Mask procedure allows the operator to quickly adjust the system to the local RF environment on order to reject safe signals
    • Sorting and filtering is supported in the Signals table
    • The Report function allows the operator to export all obtained information about the desired signals
    • Is easily localizable to any language



    • Fields of ‘Known Signals’ table:Frequency, BW, Name, Modulation
    • Fields of ‘Bands’ table:Begin, End, Name, Type, Threshold, Priority, Tracker detection
    • Fields of ‘Signals’ table: Frequency, Bandwidth, Name, dbm Level, dbm Peak Level, Danger Level, Peak Danger Level
    • Detector’s modes: Wide-Range, Signal
    • Update rate: 2000-3000 MHz/sec
    • Frequency range: 40kHz-6000MHz
    • Time to detect: 2-3 seconds
    • Spectrum graphs: Waterfall and Spectrogram’s
    • Spectrum resolution's 9kHz
    • Displayed Dynamic range: 0.5, 1, 2, 5, 10, 25, 50, 100, 200, 500, 1000, 2000, 3000, 6000 MHz
    • Systems Requirements: 3rd generation or newer Intel dual/quad Core i-series, 1 x USB3.0 2 x USB2.0, Windows 7,8,10

    Included in Kit:

    • High Voltage probe
    • Low Voltage probe
    • In-line modular adapter
    • infrared/VLF probe
    • Extension cable
    • Tripod
    • Directional antenna
    • Omnidirectional antenna
    • Delta X software
    • Built in Spectrum analyzer
