EOD Remote Pull Spool with 100ft Firing Wire in Rip Away Pouch

×
×
Price:
$296.97
SKU:
EODSPWFW
Shipping:
Calculated at checkout
Quantity:


Description
Reviews
Related Products
Product Videos
Warranty
Also Viewed
By Category
Other Details
  • Product Description

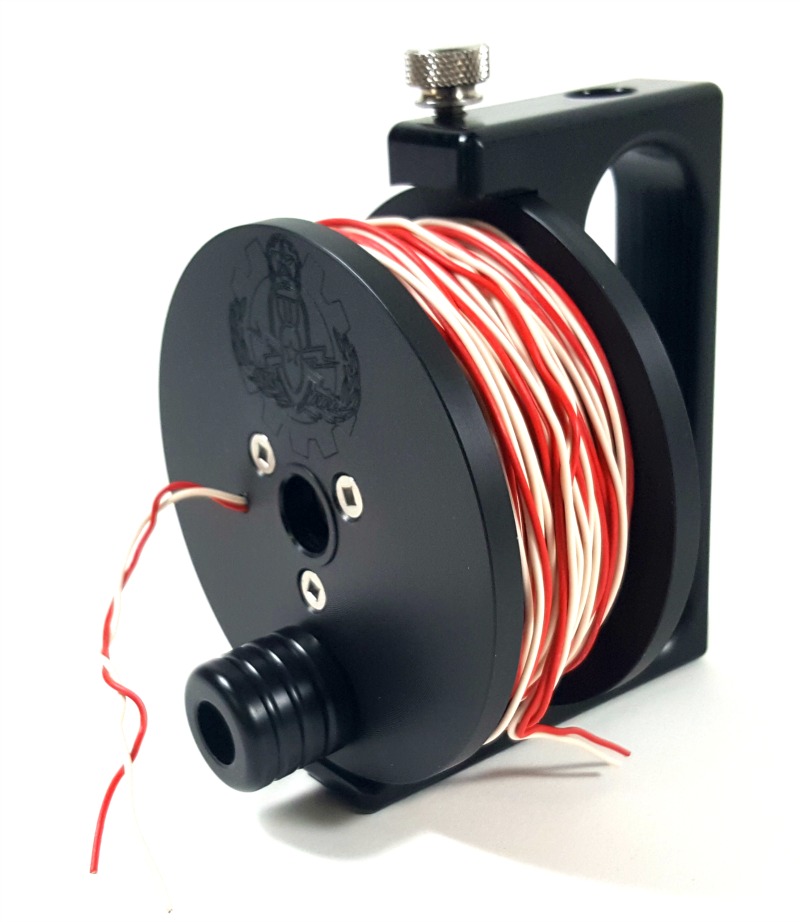

    EOD Remote Pull Spool with 100ft Firing Wire in Rip Away Pouch


    The EOD Remote Pull Spool is the ideal spool to have for rapid deployment of line for a remote pull.

    The integrated handle allows the EOD Tech the ability to quickly deploy line, to have something sturdy to hold on to while conducting remote pull and to quickly roll up the line and pack up.

    Description:

    - Rigging reel is black in color.

    - Reel constructed with Delrin

    - All hardware Stainless Steel

    - Reel consist of two 4" dia x 1/4" thick circular disks and a round reel core that is 1.47" in diameter and 1.3" long.

    - The distance between the two outer 4" disks is 1.3" (inside diameter).

    - The reel core is secured to the 4" disks on each side with 3 square drive flat head cap screws.

    - Hex socket shoulder screw pass through the center of the two 4" disks and the reel core that screws into a reel handle.

    - 1" diameter x .85 " long round knob secured to the outside of the 4" reel by a square drive flat head cap screw.

    - The center of the knob is approximatly .63" from the outside of the 4" disk.

    - Reel handle is black in color.

    - Reel handle shall be 4.7" x 1" with a oblonged hole where the operators fingers will grasp the handle.

    - The reel handle has a line guide that extends over  the 1.3" gap between the two 4" disks.

    - The reel handle has a knurled thumb screw that passes through the reel handle  providing friction on the outer edge of the reel.

    - The thumb screw is interchangeable to either side of the handle.



    CABLE Wire:

    - Cable is 100’ in length.

    - Cable is 2 cores of stranded wire uniformly twisted together

    - Conductor material is tin plated copper

    - Conductor size is 0.5mm x 2

    - Minimum voltage rating of 600v AC

    - Minimum current rating of 10A

    -Cable spooled on reel with a pigtail passing through the outer disk approximately 1” from the center.



    ***SPOOL WITH LINE IS HOUSED IN OUR NEW CUSTOM RIP AWAY POUCHES!
