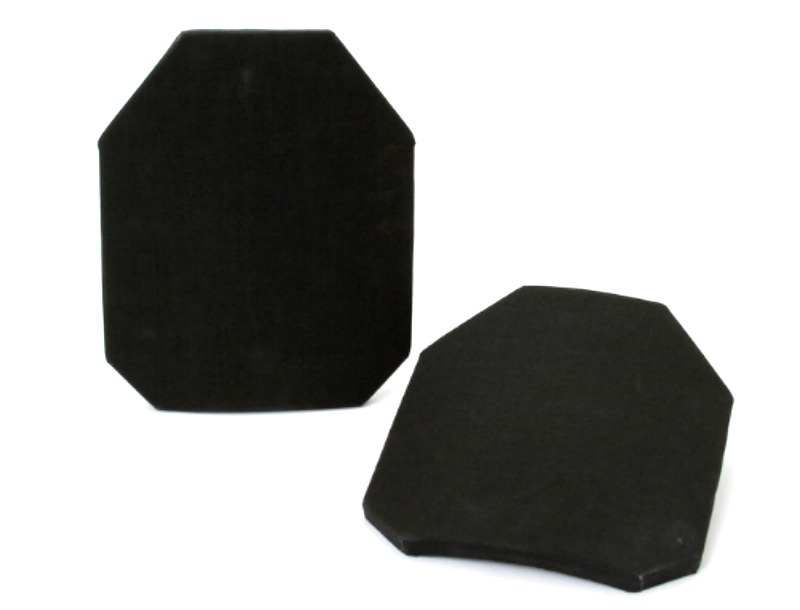

NIJ 06 LEVEL 4 SINGLE CURVE CERAMIC PLATE

SKU:
4S17
$141.95
(No reviews yet) Write a Review

NIJ 06 LEVEL 4 SINGLE CURVE CERAMIC PLATE


This NIJ 06 LEVEL 4 SINGLE CURVE CERAMIC PLATE is going to give you maximum protection in a ceramic single curve plate at a great price!



The 4S17 Series are NIJ 0101.06 Certified & DEA Compliant Stand Alone Single Curve Plates.  The 4S17 Hard Armor ballistic insert provides protection against projectiles, shrapnel and improves the performance of ballistic vest and tactical EOD search suits.




This insert comes in our modified Shooter’s Cut, Swimmer’s Cut, SAPI Cut, and Full Cut and is available in a Multi-Curve configuration.  Providing protection from Armor Piercing munitions, the CT-4S17 is an ideal choice for end users seeking an affordable high performing ballistic resistant armor plate.



  • Protection: Level IV Stand Alone Armor Piercing
  • NIJ Standard 0101.06: This product has been certified compliant by NIJ
  • DEA: Hard Armor Protocol Compliant
  • RST: Rifle Special Threats Validated
  • Material: Ceramic strike face composite backing
  • Exterior Cover: 1000D Cordura®, Textured Nylon
  • Thinness: 0.95”
  • Cut: The 10” x 12” shooters cut plates are considered nominal and the actual measurement is 9.5” x 11.5”.
  • Warranty: 10 years on all ballistic material excluding exterior cover and 1 year on exterior cover material and workmanship
  • Disclaimer: Text shown on strike face is for marketing purposes only. The actual labels are NIJ approved self-adhesive labels.
SIZE WEIGHT
5.00"X7.00" SIDE PLATE 2.60 LBS
5.00"X8.00" SIDE PLATE 2.90 LBS
6.00"X6.00" SIDE PLATE 2.50 LBS
6.00"X8.00" SIDE PLATE 3.50 LBS
8.00"X10.00" FULL SIZE 5.70 LBS
8.00"X10.00" SHOOTERS CUT 5.60 LBS
10.00"X12.00" FULL SIZE 8.50 LBS
10.00"X12.00" SHOOTERS CUT 7.20 LBS
10.00"X12.00" SWIMMERS CUT

7.70 LBS



SPECIFICATION
PRODUCT NAME CT-4S17
PROTECTION LEVEL IV (MULTI STRIKE)
NIJ CPL 4S17
CONFIGURATION SINGLE CURVE
THICKNESS 0.95"
TYPE OF MATERIALS COMPOSITE / CERAMIC
PROTECTIVE COVER CORDURA



BALLISTICS VELOCITY
5.56X45MM (M193) 3000 FPS
5.56X45MM (M855) 3000 FPS
7.62X39MM (MSC) (M43) 2400 FPS
7.62X51MM (M80) 2750 FPS
7.62X63MM (M2) (AP) 2880 FPS
7.62X39MM (API) (BZ) 2400 FPS



Due to the nature of this product, All Sales are Final. Warranty/MFG Defects excluded. LE/MIL only shipments to CT.  Please allow 2-3 Weeks for shipment.

Shipping Cost:
Calculated at Checkout
