Under Vehicle Surveillance System

SKU:
UVSS
$46,745.00
(No reviews yet) Write a Review

Under Vehicle Surveillance System


SecurOS™ UVSS — Under Vehicle Surveillance System Available on GSA!

  • Better Inspection Coverage eliminates gaps by inspection mirrors
  • Safer & Faster - Streamlines Inspection Process
  • Day & Night Use
  • Full Undercarriage Capture
  • Integrated LPR/ANPR provides real time license plate recognition
  • Easy to Install - IP68 Rated, Easy to Install and Maintain

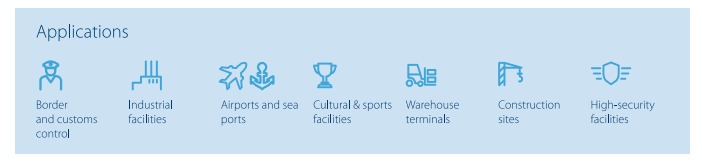

SecurOS UVSS is a hardware-software based system for under-vehicle surveillance. The system creates a database of high-resolution undercarriage images and recognized vehicle license plates. SecurOS UVSS provides high-quality images of the entire width of a vehicle’s undercarriage. Moreover, it is a cost-effective and convenient solution for visual inspection of all types of vehicles: from passenger vehicles to trucks and trailers. It is a perfect solution for government, military, corporate, and transportation facilities - wherever particular vehicle monitoring is required.



UVSS System Includes

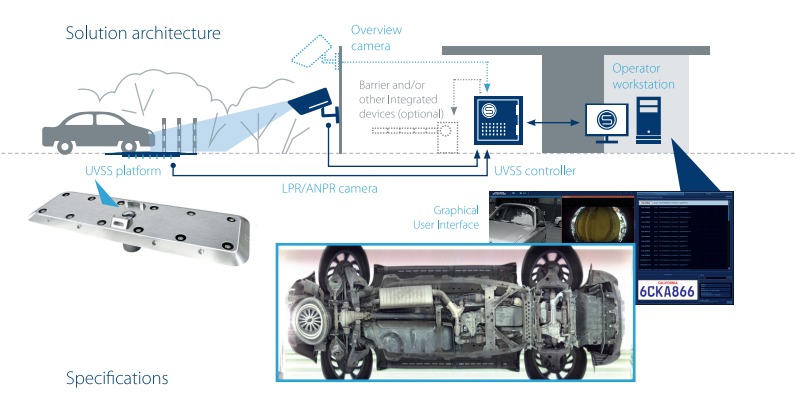

SecurOS UVSS Scanning Platform, SecurOS UVSS Module Software Bundle, Power Supply, SecurOS UVSS Controller (Server).  Server is rack mountable and has an 8th Generation i7 processor and NVIDIA GPU which manages 1 UVSS Platform and up to 2 LPR Channels.



Under Vehicle Surveillance System Advantages

  • Compact UVSS platform does not require time-consuming installation and is easy to maintain
  • Use of video analytics detectors – no need for physical devices to detect vehicle presence
  • Automatic comparison of the undercarriage image with the reference image
  • Maximum vehicle speed is up to 10 mph
  • Interoperability with a surveillance camera(s), Access Control System, barriers, traffic lights, motion control
    devices, electronic visual display boards, and more




  • 9 Pixels per CM
  • 10 MPH Max Speed
  • White Light LED Built In Illumination
  • 3 Second or Faster Image Processing Speed
  • 60+ Country License Plate Recognition
  • Operating Temperature -40 F to 140 F
  • Power 24VDC 50W

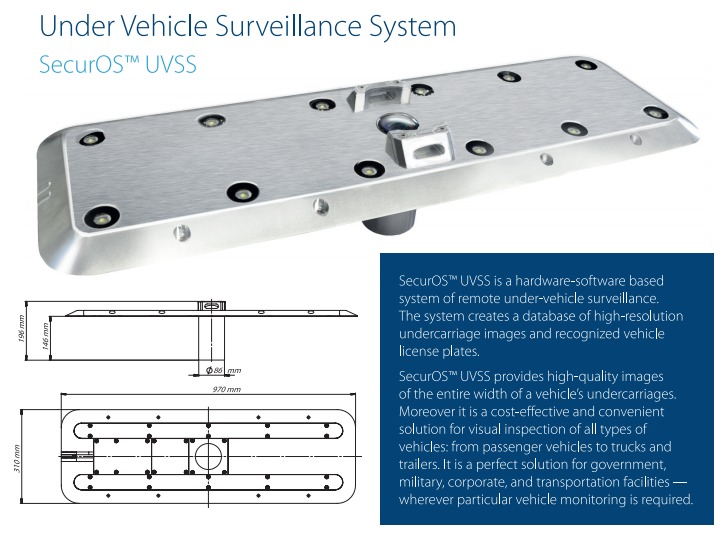

  • 38.2" x 12.2" x 7.7"
  • 26.5 Pounds
  • Max Distance from UVSS to Controller: 131 Feet






Shipping Cost:
Calculated at Checkout
