EOD Green Dot Laser


EOD Green Dot Laser

Clear your area quickly with the C-Trip Dot Laser!


What you're getting:

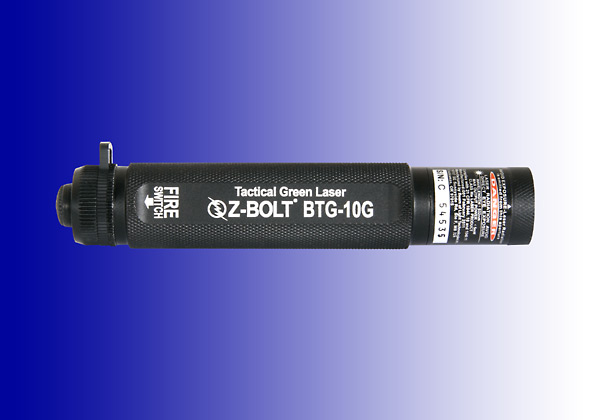

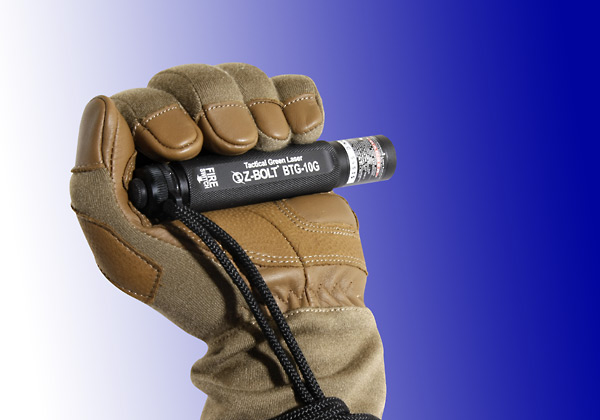

  • BTG-10G Tactical Green Laser Pointer:
    Waterproof, Shock Resistant
    Field Serviceable, Ruggedized
  • Design Improvements for 2013:
    Knurled Tube, Power Lock Out, Lanyard Loop
  • US Made Modular Pouch
    Small Pouch for BTG-10G Green Laser
    Choice of ACU, Coyote Brown, Black [LE],
    MultiCam, Ranger Green
    (Berry Compliant)
  • 2 pcs CR123A Lithium Batteries:
    Lithium / Manganese Dioxide [Li/MnO2]
    1400 mAh, 3 V
  • Constant On/Off Click Switch
  • Includes Accessory Lanyard Loop Switch
  • SOP Instruction Manual, Quick Start User Guide


Technical Data:

  • Wavelength [Color] - 532 nm
  • Output Power - Certified 4.0 ~ 5.0 mW
  • ANSI Class 3R - / FDA Safety Class IIIa
  • NOHD - Nominal Ocular Hazard Distance 0.25 sec Exposure - 30m
    10.0 sec Exposure - 45m
  • NOHD-M [7x50 Binoculars] -
    NOHD with Magnifying Optics
    0.25 sec Exposure - 190m
    10.0 sec Exposure - 310m
  • NOHD-M [12 cm Optics] -
    NOHD with Magnifying Optics
    0.25 sec Exposure - 445m
    10.0 sec Exposure - 740m
  • Visual Range at Night - 5 Miles
  • Beam Diameter at Source - 1.1 mm
  • Product Warranty - 1 Year


The Z-Bolt® C-TRIP has been recently adopted by US Navy EOD and is now deployed in the operational forces.  EOD techs use to illuminate and fluoresce trip and command wires.  The C-TRIP paints a brilliant 60 degree fanned vertical green laser line, measuring 15’ at 15’ distant.  Easily scan doorways, halls or stairwells with one pass.

Field Report – Navy EOD Tech, EOD Group Two:  “I have been evaluating the C-TRIP (Green Laser Trip Wire Illuminator) extensively with various Navy EOD teams. The unit has been put to good use for trip wire searches in a high speed assault atmosphere. Navy EOD doesn't have all day to clear areas during assaults because of the fast pace. This tool allows quick scanning of the area in a fraction of the time spent using a green dot laser. It has done well with all trip wire types ie, copper wire, metal wire, fishing line, and regular thin rope type material. The tool is also good to highlight the path of command wire quickly. The guys really like it”.

The C-TRIP Green Laser Trip Wire Illuminator is safe to operate, waterproof, and shock resistant.
