This was the heavier, broader-coverage Level III shield in our line, and the extra weight bought something specific: .30-06 Springfield sat on its tested threat list alongside the usual 7.62 and 5.56 rounds. At 19 pounds with the viewport fitted, it belonged to the deliberate-movement class rather than the long-carry class.
What this shield was rated to stop
Level III, compliant with NIJ 0108.01, tested against:
- .30-06 Springfield (LC)
- 7.62x51mm (M80, 147gr at 2,780 fps)
- 7.62x39mm (Chinese and Russian MSC LC)
- 5.56x45mm (M193, in 55, 62 and 77gr)
- 5.45x39mm MSC
Plus all lesser threats, handgun calibers included. Note the distinction that trips people up: .30-06 Springfield lead-core is not the same thing as .30-06 M2 AP. The steel-core armor-piercing variant is a Level IV threat. A Level III panel tested against .30-06 LC has not been tested against M2 AP, and the two should never be treated as interchangeable in a threat assessment.
Size, weight and what that means operationally

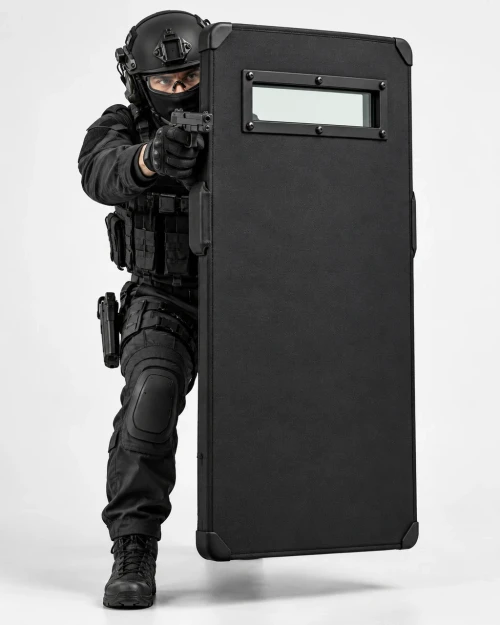

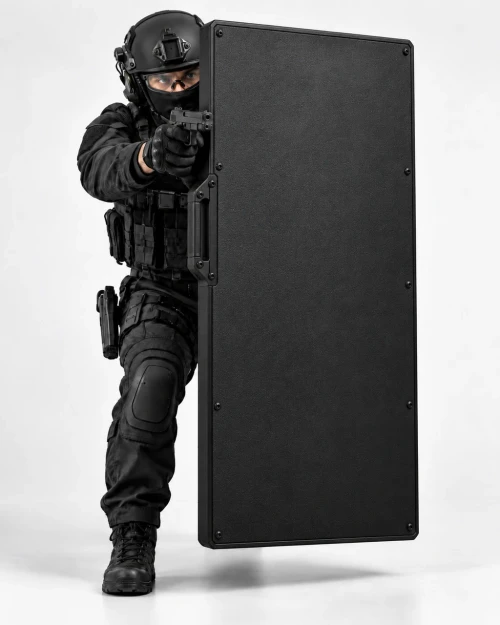

20 x 30 inches, 0.87 inches thick, 19 pounds with the viewport. The same panel without a viewport ran 15 pounds. Nineteen pounds is a serious carry. It suits deliberate approaches, barricade work and static positions. It does not suit a long perimeter hold or a team that needs a shield up for extended periods one-handed.
If your operators have not timed themselves holding a 19-pound panel in a genuine ready position, do that before specifying this weight class. The honest number tends to surprise people.
Configuration
Offered as a rectangle or with dual cutouts, with an optional tactical cover. The dual cutout clears the firing hand for pistol work from behind the panel. The rectangle maximises uninterrupted coverage.
This shield is no longer in our line
We no longer supply this configuration. We do still spec and source Level III shields with viewports, including panels rated against .30-06 class threats, and we would rather quote a current option than take an order against a discontinued part number.
Use Add To Quote with the rounds you are planning against, the coverage you need, and your realistic carry weight. We will come back with current options, lead times and pricing. The current range is on the ballistic shields page.
Who we spec shields for
EOD Gear was founded by a former U.S. Navy EOD technician. We supply law enforcement, SWAT, military and EOD units, including agencies buying on contract and through GSA. We ask about callout profile before we quote a weight class, because that is where most shield purchases go wrong.
Questions we get about heavier Level III shields
Is 19 pounds too heavy for a shield?
Not inherently. It is too heavy for some roles and correct for others. Static positions, deliberate approaches and barricade work tolerate it. Long carries and one-handed ready positions do not.
Why is this heavier than other Level III shields?
More coverage area at thickness, a broader tested threat list including .30-06 class rounds, and the viewport. Weight in shields is mostly a function of rating, area and construction, in that order.
Does .30-06 on the list mean it stops armor-piercing?
No. Lead-core .30-06 and steel-core .30-06 M2 AP are different threats. AP is Level IV. This is the single most common misreading of a shield spec sheet we encounter.
What does the viewport add in weight?
Four pounds on this panel: 15 without, 19 with.
Rectangle or dual cutout?
Dual cutout if the operator runs a pistol from behind the shield. Rectangle for maximum uninterrupted coverage.
Can we buy on contract or through GSA?
Yes. Include your contract vehicle or agency details with the quote request and we will route it correctly.
How long does a quote take?
Same or next business day for anything we stock or can source directly. Custom sizes and specialised glazing take longer, and we will tell you the lead time before you commit.
