VCOG® 1-6x24 Riflescope


VCOG® 1-6x24 Riflescope

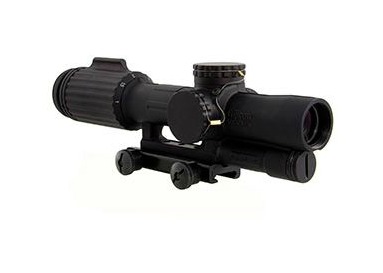

The Trijicon VCOG™ 1-6x24 Riflescope is an innovative riflescope built to fulfill your needs.

The Trijicon 1-6x24 Variable Combat Optical Gunsight is a rugged variable powered riflescope that accommodates close quarter battle (CQB) and long distance marksmanship. It features superior glass quality and light gathering capabilities with zero distortion.

The bullet drop compensating and ranging reticles allow for the shooter to quickly and accurately estimate range and apply the correct hold.

The first focal plane reticle allows the subtensions and drops to remain true at any magnification. With a forged 7075-T6 aircraft-aluminum-alloy housing, the Trijicon V.C.O.G. Scope is an exceptionally durable and nearly indestructible sighting system. Robust enough for any application, the VCOG utilizes a single AA battery, commonly found across the globe and offers 6 adjustable brightness settings for the LED reticle.

When powered by a lithium AA battery (like the one provided), it boasts a considerable battery life of 700 hours at setting 4 (constant on). An integrated dial fin allows easy rotation through the magnification range and a constant eye relief means no head or stock position adjustments are needed. Waterproof to 20 meters (66 ft.), the Trijicon VCOG Riflescope comes standard with a TA51 mount.


Magnification: 1-6x
Objective Size: 24
Bullet Drop Compensator: Yes
Weight (oz): 23.2 (w/o mount or battery)
Illumination Source: LED
Calibration: 5.56/55 grain, 5.56/.223 77 grain, .300 BLK, .308 175 grain
Bindon Aiming Concept: Yes
Eye Relief: 4 in. Constant
Exit Pupil: 0.41 - 0.15 in.
Field of View (Degrees): 18.0 - 3.0
Field of View @ 100 yards (ft): 95 - 15.9
Adjustment @ 100 yards (clicks/in): 1 click @ 100m = 1/2 in.
Mount Comes With: TA51
Housing Material: Forged Aluminum
Batteries: 1 AA Alkaline or Lithium Battery
Battery Life: 715 hours continuous use at brightness setting 4 of 6
Dimensions: 10.05 x 2.51 x 2.73 in.
Focal Plane: First
Adjustment Range:


Package Contents:

  • Trijicon VCOG Riflescope
  • 1 Thumb Screw Mount (TA51)
  • 1 Lithium AA Battery
  • 1 LENSPEN® (TA56)
  • 1 Trijicon Logo Sticker (PR15)
  • 1 Manual
  • 1 Warranty Card
